Description
Welded Wire Mesh Fence(3D)
Material: Low carbon steel wire
Wire: 3.0mm-6.0mm
Mesh: 50*200mm,50*100mm, etc.
Height: 1.2m-3m
Width: 2.9m
Post: 60*60mm,80*80mm,100*100mm, etc.
Accessories: post caps, clips, nuts and bolts.
Surface treatment: Hot dipped galvanized, PVC coated, Powder coated
Packaging: Pallets
Certificates: ISO9001, BV,SGS
Product description
Welded Wire Mesh Fence Panels, also known as curvy welded fencing, triangle mesh fence, 3D fence, and more, are lightweight yet durable fencing options. They are composed of wires welded together to form a fence. Welded wire mesh fence can undergo various surface treatments, including hot-dipped galvanization, PVC coating, and powder coating.
Wire Panels are a type of welded wire mesh that features V-shaped strengthening bending curves. They are made from high-quality low carbon steel wire, often galvanized and further treated with hot-dip galvanization, powder coating, or PVC coating. Welded Wire Panel Fence has a modern and attractive appearance. It is primarily used for security protection in construction sites, residential buildings, sports fields, warehouses, highway or airport service areas, railway stations, and more.
Welded Wire Mesh Fence Panels Sizes
The welded wire mesh fence panels have a width of 2900mm and heights ranging from 600mm to 3000mm. There have vertical barbs of 30mm on one side and are reversible (barbs at top or at bottom). Mesh sizes are 200 x 50mm , and 100mm x 50mm for the beam sections. The heavy wires guarantee strength and rigidity. Different sizes can be made according to customer detailed requirements.
Posts about Wire Panels
The welded mesh fence panels are attached with high strength steel posts. The common posts of the welded fence are SHS tube, RHS tube, Peach post, Round pipe or Special-shaped post. Welded mesh fence panels will be fixed to the post by suitable clips according to different post type.
Welded Wire Panels Installation manner;
1.The post popular buried under the ground 600mm-800mm and pouring concrete when installation them.
2.Welded flange base under the post ,and use setscrews to install on the hard ground

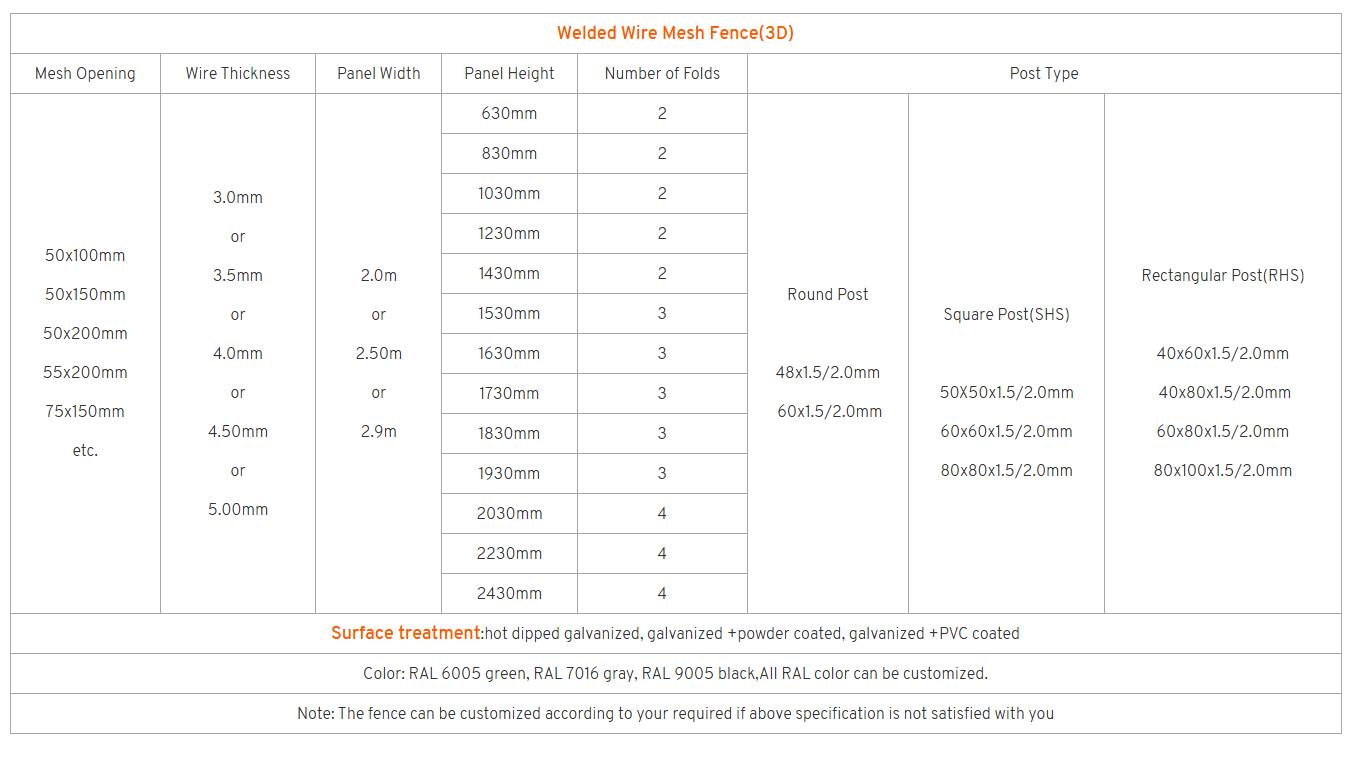

Specifications

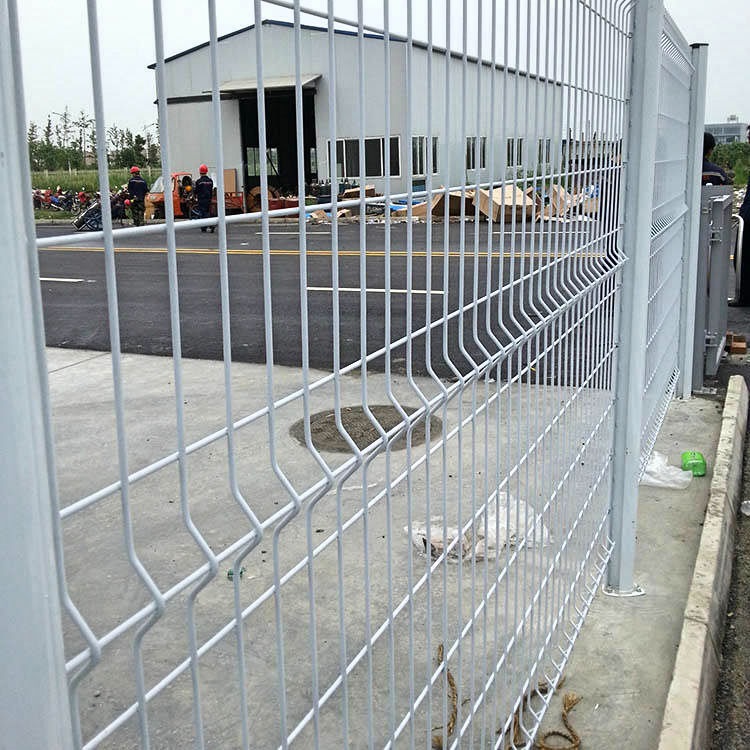

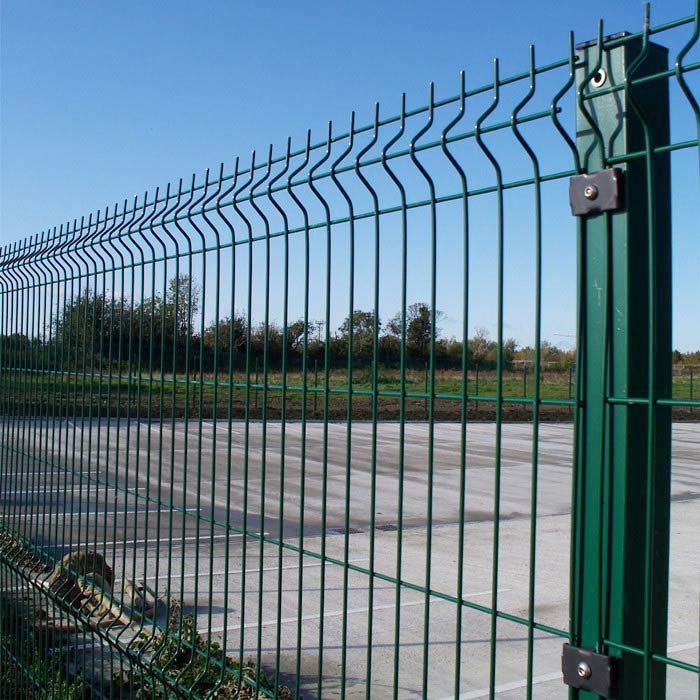

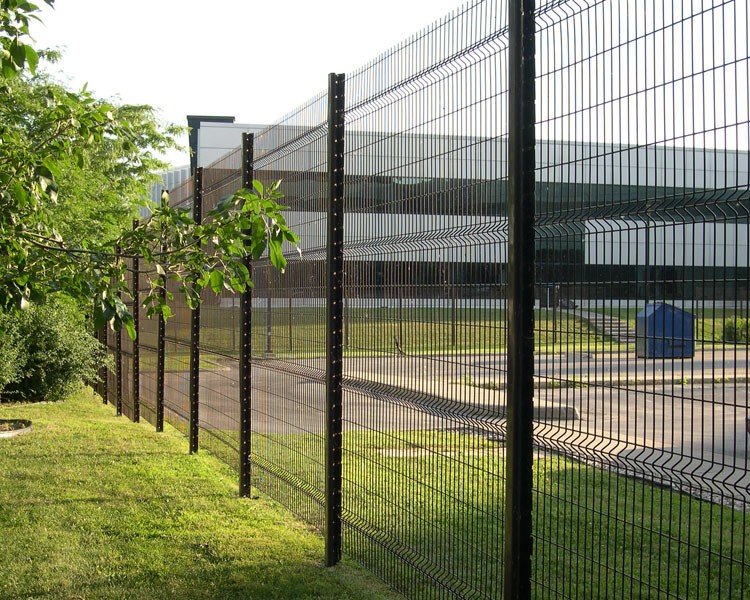

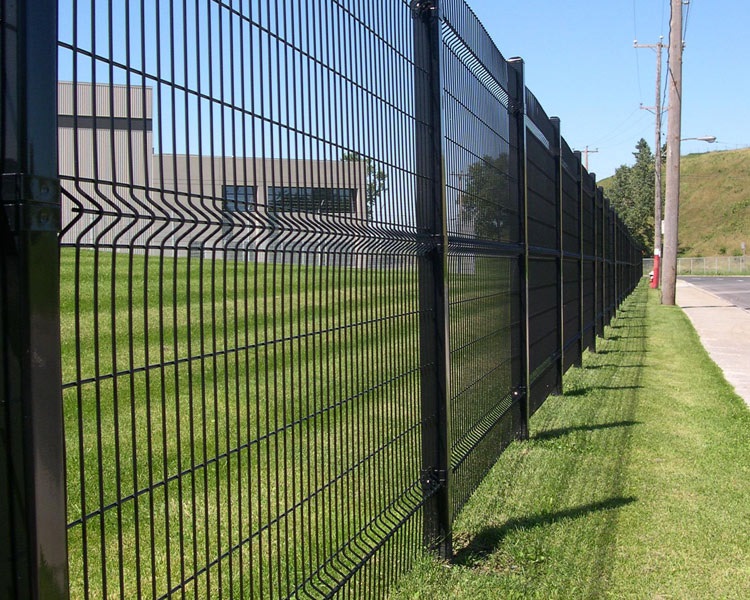

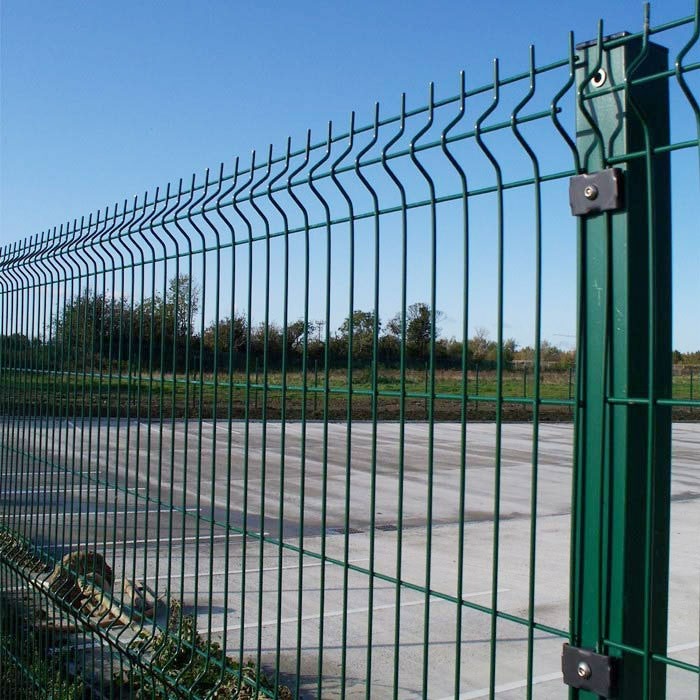

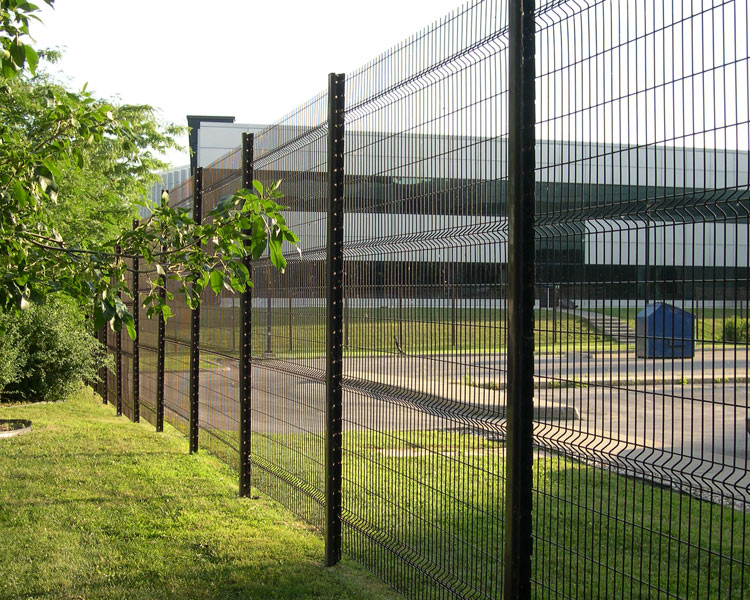

Photos
